Bridge Material Post Tentioning 3-piece Anchor Head Grip Clip Prestressing Concrete Anchorage 0.6' Wedge Barral

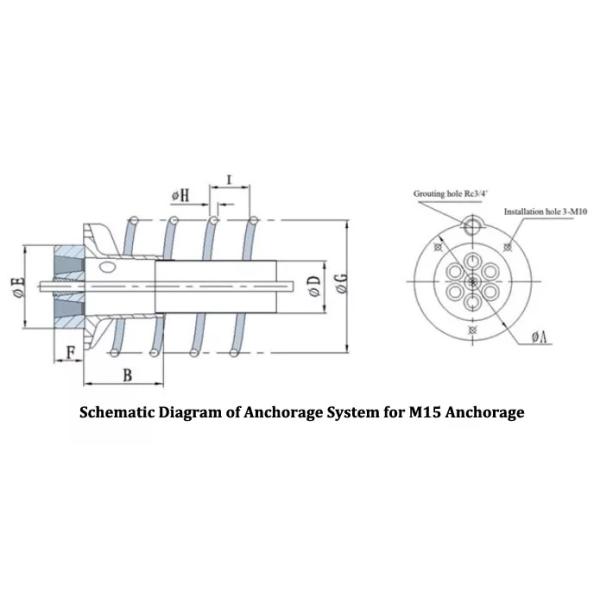

Specification of 15-1-27 Anchorage
| Model | Anchor Head | Casting | Corrugated Pipe | Spiral Reinforcement | Tensioning Jack |
| φA*B | φC*D | Inner φ E | φD*φE*H | Coils (N) |
| M15-1 | φ45*44 | 80×80×δ14 | Φ45 | Φ90×Φ6.5×30 | 4 | YDCQ250(YCQ25Q) |
| M15-2 | φ83*46 | Φ130×110 | Φ50 | Φ130×Φ6.5×40 | 4 | YDC1000(YCQ100Q) |
| M15-3 | φ87*46 | Φ130×110 | Φ50 | Φ130×Φ6.5×40 | 4 | YDC1000(YCQ100Q) |
| M15-4 | φ95*46 | Φ145×120 | Φ50 | Φ140×Φ8×50 | 4 | YDC1000(YCQ100Q) |
| M15-5 | φ105*46 | Φ160×130 | Φ60 | Φ155×Φ8×50 | 4 | YDC1500(YCQ150Q) |
| M15-6 | φ117*46 | Φ165×120 | Φ60 | Φ170×Φ10×50 | 4 | YDC1500(YCQ150Q) |
| M15-7 | φ125*52 | Φ180×150 | Φ70 | Φ170×Φ10×50 | 4 | YDC1500(YCQ150Q) |
| M15-8 | φ135*52 | Φ195×160 | Φ70 | Φ180×Φ10×50 | 4 | YDC2000(YCQ200Q) |
| M15-9 | φ145*54 | Φ208×160 | Φ75 | Φ180×Φ10×50 | 4 | YDC2500(YCQ250Q) |
| M15-10 | φ156*57 | Φ220×180 | Φ75 | Φ180×Φ12×50 | 4 | YDC2500(YCQ250Q) |
| M15-11 | φ157*57 | Φ220×180 | Φ75 | Φ180×Φ12×50 | 4 | YDC3000(YCQ300Q) |
| M15-12 | φ165*60 | Φ235×190 | Φ80 | Φ190×Φ14×60 | 4 | YDC3000(YCQ300Q) |
| M15-13 | φ166*60 | Φ235×190 | Φ85 | Φ190×Φ14×60 | 4 | YDC3500(YCQ350Q) |
| M15-14 | φ176*64 | Φ235×215 | Φ85 | Φ210×Φ14×60 | 4 | YDC3500(YCQ350Q) |
| M15-15 | φ177*64 | Φ235×215 | Φ90 | Φ210×Φ14×60 | 4 | YDC3500(YCQ350Q) |
| M15-16 | φ187*66 | Φ245×230 | Φ90 | Φ220×Φ16×60 | 5 | YDC4000(YCQ400Q) |
| M15-17 | φ187*66 | Φ245×230 | Φ100 | Φ220×Φ16×60 | 5 | YDC4000(YCQ400Q) |
| M15-18 | φ196*70 | Φ265×245 | Φ100 | Φ230×Φ16×60 | 5 | YDC4000(YCQ400Q) |
| M15-19 | φ196*70 | Φ265×245 | Φ100 | Φ230×Φ16×60 | 5 | YDC5000(YCQ500Q) |
| M15-20 | φ215*73 | Φ290×260 | Φ100 | Φ250×Φ16×60 | 5 | YDC5000(YCQ500Q) |
| M15-21 | φ215*75 | Φ290×260 | Φ100 | Φ250×Φ16×60 | 5 | YDC5000(YCQ500Q) |
| M15-22 | φ215*78 | Φ290×260 | Φ115 | Φ250×Φ16×60 | 5 | YDC5000(YCQ500Q) |
| M15-23 | φ226*80 | Φ320×270 | Φ115 | Φ270×Φ18×60 | 5 | YDC6500(YCQ650Q) |
| M15-24 | φ235*80 | Φ320×270 | Φ115 | Φ270×Φ18×60 | 5 | YDC6500(YCQ650Q) |
| M15-25 | φ236*80 | Φ320×270 | Φ115 | Φ270×Φ18×60 | 5 | YDC6500(YCQ650Q) |
| M15-26/27 | φ236*82 | Φ320×270 | Φ130 | Φ270×Φ18×60 | 5 | YDC6500(YCQ650Q) |
| M15-28/29/30/31 | φ236*88 | Φ352×320 | | Φ340×Φ20×60 | 6 | YDC6500(YCQ650Q) |
Hot sale post tension anchor for PC strand can be use for a wide range , the design of the wedge and the anchor hole must to match, make in the tension together to work, force evenly.
Prestressted Concrete Anchorage Bridge Construction Material can be selected from 1 to 55 tendons per design requirements. The tensile force can be controlled within 0 - 11000 KN.
We can offer anchorages of any specifications in accordance with demands of customers.
Wide applications it is adaptable for strands with diameters from Φ9.5mm to Φ21.6mm ,with standard strength from 1860MPa to 2200MPa.With Compacted structure ,easy operation , safety and laborsaving , high anchoring efficiency and reliable quality.
Which is widely used for different projects ,such as road and railway bridge, large scale industrial factory, high rise building,Hydroelectric dam , geotechnical engineering, etc.
